VGA Connector Pinout: A Comprehensive Guide for Engineers and PCB Assembly
Understanding the Importance of VGA Pinouts
Are you sourcing PCB assembly services or managing electronics design? Knowing the VGA connector pinout isn’t just important—it’s essential. From decoding video signals to ensuring seamless PCB mounting, VGA pinouts play a critical role in both video display technology and PCB design workflows. This guide will cover everything you need to know about VGA pinouts, including their configuration, wiring, and how they connect with PCB assembly and wave soldering services.
What Is a VGA Connector Pinout?
A VGA connector pinout refers to the arrangement of the 15 pins in a VGA connector, each serving specific purposes for transmitting video signals and synchronization data.
Quick Pin Configuration for VGA (15 Pins)
- Pin 1: Red video signal
- Pin 2: Green video signal
- Pin 3: Blue video signal
- Pin 4: Monitor ID bit
- Pins 5-8: Ground pins for red, green, and blue signals
- Pins 10, 13: Synchronization signals (horizontal and vertical sync)
- Other pins: Reserved or optional functionality
What You Need to Know About the VGA Connector Pinout – OURPCB
What Is the Use of Each VGA Pin?
Each pin in a VGA connector has a dedicated function. Let’s break it down:- Pins 1, 2, 3: Carry video data for the red, green, and blue color channels.
- Pin 9: Provides power for plug-and-play detection.
- Pins 10, 13: Handle horizontal and vertical synchronization signals to ensure smooth video rendering.
- Pins 11, 12, 15: Additional data like monitor ID and color calibration.
How Many Pins Does a VGA Connector Have?
A standard VGA connector has 15 pins, arranged in three rows of five pins each. While older VGA cables may feature variations like 9-pin designs, modern connectors typically conform to this 15-pin format to support high-quality analog video transmission.

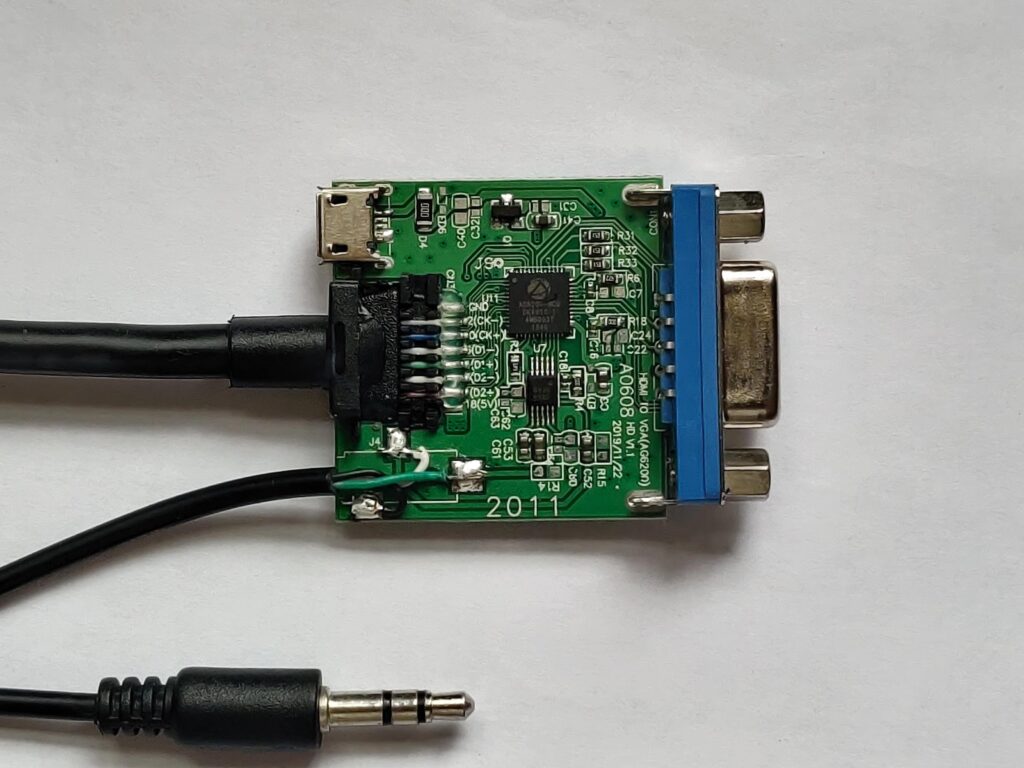

How to Wire a VGA Connector to PCB?
Proper wiring is critical to ensuring reliable signal transmission. Here’s a step-by-step overview:
- Match Pins to PCB Traces:
Assign the red, green, and blue signals to corresponding traces on the PCB. - Grounding:
Use dedicated grounding planes for pins 5-8 to reduce electrical noise. - Soldering:
Employ wave soldering services to ensure robust and uniform connections, especially in high-volume PCB production.
Pro Tip: Partner with a PCB assembly service that specializes in VGA connector configurations to save time and ensure accuracy.
VGA Connector Pinout Explained: Importance and Misconception – PCBTok

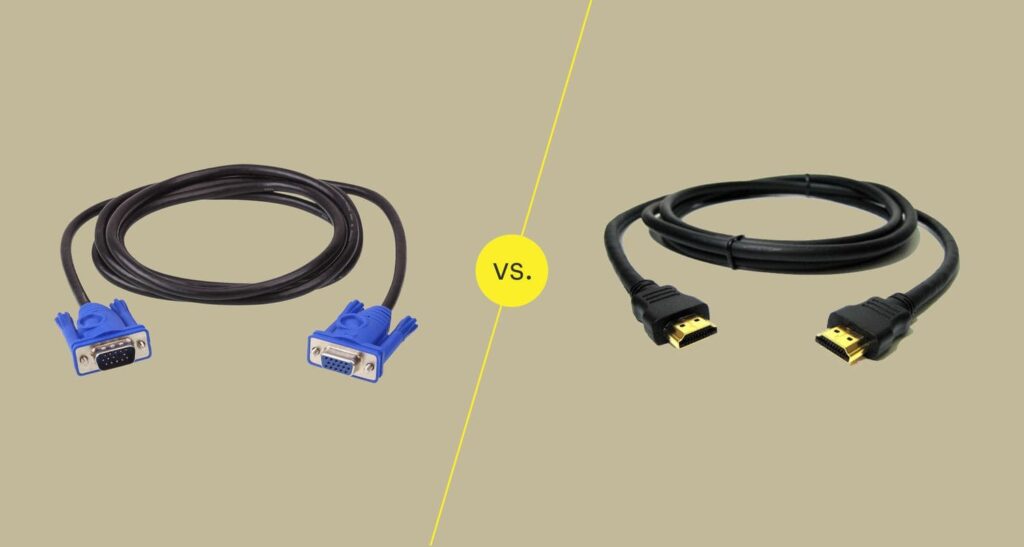

Difference Between VGA and HDMI
Both VGA and HDMI are commonly used connectors in video applications, but they differ significantly in terms of functionality, signal type, and use cases. Here’s a detailed comparison to help you decide which one suits your needs.
VGA (Video Graphics Array)
- Signal Type: Analog. It transmits video signals only, with separate pins for red, green, and blue video channels.
- Resolution: Supports resolutions up to 1920×1080, but signal quality may degrade over longer cable lengths.
- Compatibility: Commonly found in older monitors, projectors, and PCs.
- Audio Support: None—requires a separate cable for audio.
HDMI (High-Definition Multimedia Interface)
- Signal Type: Digital. It transmits both video and audio signals through a single cable.
- Resolution: Capable of supporting up to 8K resolution with HDR and advanced features.
- Compatibility: Widely used in modern TVs, monitors, laptops, gaming consoles, and home theater systems.
- Audio Support: Fully integrated for seamless video and audio output.
Which Should You Use?
Choose VGA if:
- You’re working with legacy devices that only support analog signals.
- Your project involves older monitors or video projectors.
Choose HDMI if:
- You need high-quality video and audio transmission.
- You’re working with modern devices like TVs, gaming consoles, or laptops.
Pro Tip: For devices with VGA ports but no HDMI, you can use HDMI-to-VGA adapters, but remember that audio will need to be connected separately.
VGA Connector Pinout Configuration: Explained
The 15-pin VGA configuration isn’t arbitrary. Here’s why it matters:
- Color Clarity: Separate pins for red, green, and blue signals ensure high-quality analog video.
- Sync Precision: Dedicated sync pins prevent flickering and display distortion.
- Legacy Compatibility: VGA is widely supported, even on older hardware.

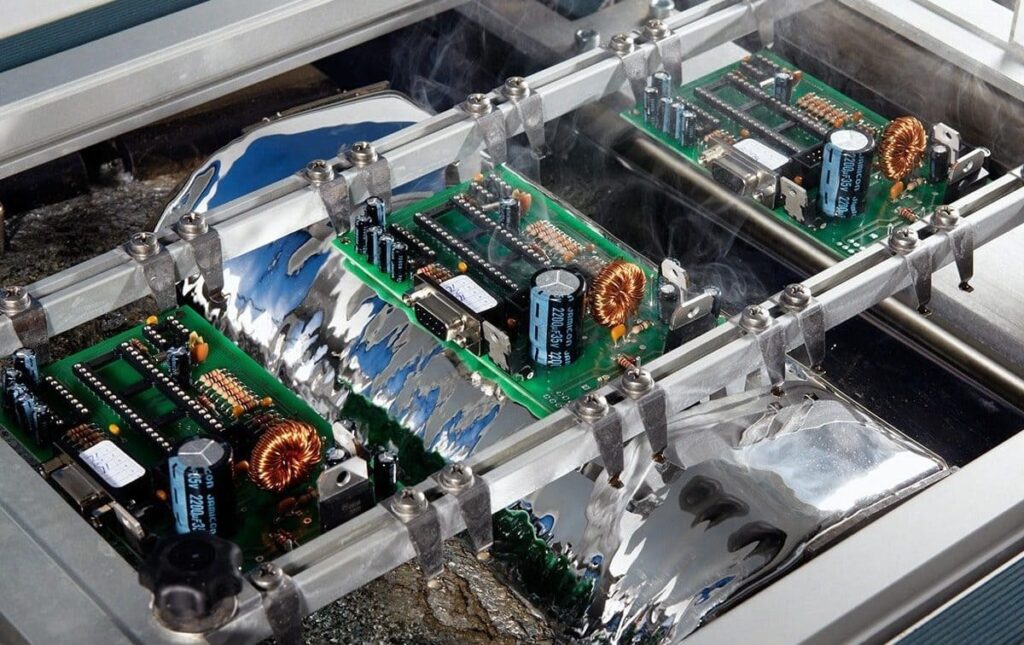

Wave Soldering Services for VGA Connectors: Best Practices
Wave soldering ensures strong connections between the VGA connector and the PCB. Here’s what to keep in mind:
- Use flux coating to prevent oxidation during soldering.
- Verify alignment: Ensure that all 15 pins are properly seated in the PCB holes.
- Post-solder testing: Use continuity testing to confirm signal integrity.
Investing in professional PCB assembly services can reduce errors in the wave soldering process, ensuring your connectors meet performance standards.
Procurement of VGA Connectors for PCB Assembly: What You Should Know
Key Considerations:
- Supplier Reliability:
Work with trusted suppliers to source VGA connectors that meet your specifications. - Quality Assurance:
Look for connectors with gold-plated pins for improved conductivity. - Compatibility:
Ensure the connectors match the design requirements of your PCB layout.
Outsourcing to a PCB assembly service provider can simplify the procurement process, as they often handle both material sourcing and mounting.
Frequently Asked Questions
No, a 9-pin VGA connector is an older standard and lacks compatibility with devices designed for the 15-pin configuration. Modern VGA applications generally require all 15 pins to function properly.
You’ll need a soldering iron, flux, solder wire, and a PCB layout designed for the VGA connector. For mass production, wave soldering is recommended to achieve consistent results.
Common issues include bent pins, poor solder joints, and signal degradation due to faulty cables. These problems can often be resolved by checking pin alignment and using high-quality materials during assembly.
No, VGA cables only transmit analog video signals. For audio, you’ll need a separate connection, such as an auxiliary cable or HDMI (if supported).
