Aluminium Nitride PCBs: Properties, Advantages, and Applications
Introduction
As electronic devices get more powerful and smaller, managing heat efficiently has become a top priority in many industries, from automotive and aerospace to telecommunications. Aluminum Nitride (AlN) printed circuit boards (PCBs) have emerged as an ideal solution for applications that require excellent thermal conductivity and electrical insulation.
In this article, we’ll explore why AlN PCBs are becoming more popular in these high-performance settings, taking a comprehensive look at their properties, advantages, applications, and considerations.
What Are the Advantages of Aluminium Nitride?
Aluminum Nitride (AlN) has a high thermal conductivity (170 W/mK) and excellent electrical insulation, making it an excellent choice for applications that require effective heat management and high performance.
Unlike traditional PCB materials, AlN can withstand temperatures up to 350ºC, ensuring operational stability and long-lasting performance in demanding environments.
Key Properties of Aluminium Nitride PCBs

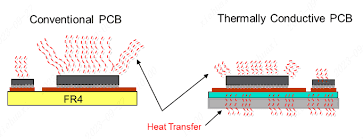

High Thermal Conductivity
Aluminum Nitride is a great thermal conductor. It has a thermal conductivity of 170 W/mK. That means it can move heat away from a source really fast. This is important for high-power applications like LEDs and RF modules. It keeps them from getting too hot. That makes them last longer and work better.
Electrical Insulation
AlN has excellent dielectric properties, despite its high thermal conductivity. This combination is important for applications that require electrical insulation and good heat management. That’s why AlN PCBs are so reliable for high-frequency telecom and RF applications.
Low Thermal Expansion
AlN’s low coefficient of thermal expansion (CTE) reduces mechanical stress on components, which makes them more durable in environments with temperature swings. This is especially important in aerospace and automotive applications where temperatures change a lot.
Chemical Resistance
Aluminium Nitride is chemically stable, although it can hydrolyze in humid environments. Manufacturers can apply protective coatings to prevent this, so it’s durable in different environmental conditions.
Comparison: Aluminium Nitride vs. Standard Aluminum PCBs
To help clarify the distinctions, here’s a comparison of Aluminium Nitride and standard Aluminum PCBs:
|
Property |
Aluminium Nitride (AlN) |
Standard Aluminum PCB |
|
Thermal Conductivity |
170 W/mK |
1-5 W/mK |
|
Electrical Insulation |
Excellent |
Limited |
|
Max Operating Temperature |
Up to 350°C |
Around 150°C |
|
Cost |
Higher |
Lower |
|
Frequency Range |
High-frequency capable |
Limited |
This table highlights how AlN is tailored for applications with high thermal and electrical demands, while standard aluminum PCBs are more economical for moderate performance needs.
Applications of Aluminium Nitride PCBs
Aluminium Nitride PCBs find applications in various high-demand industries due to their thermal and electrical properties:

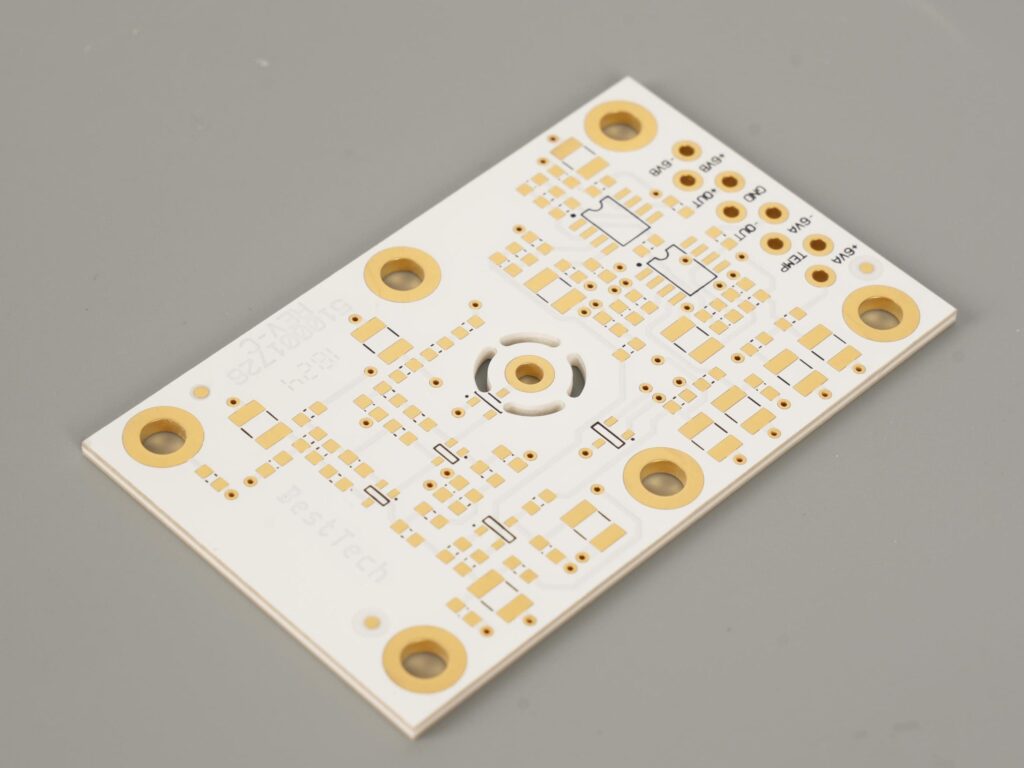

- Automotive and Aerospace: AlN PCBs are perfect for power modules, EV battery management systems, and control units, where good thermal management is important for safety and performance.

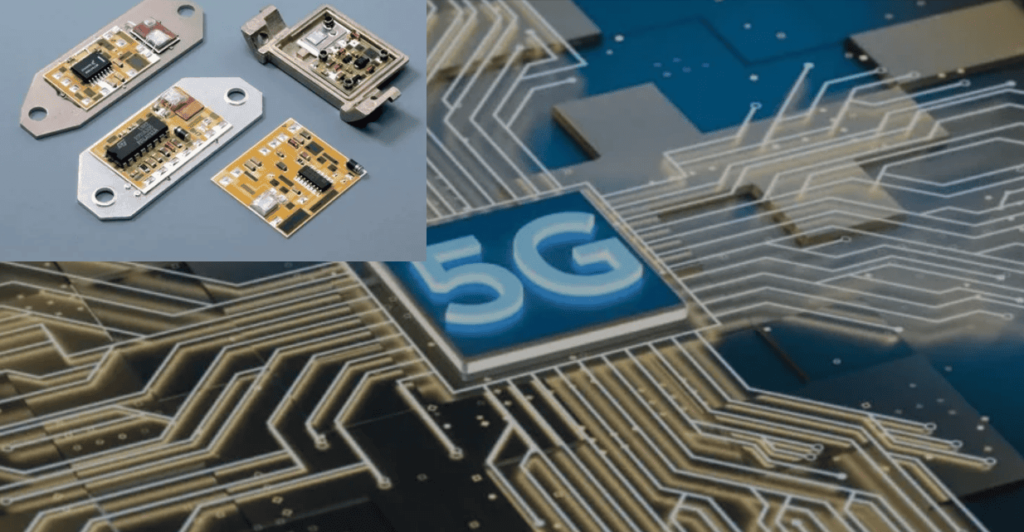

- Telecommunications: In 5G base stations, RF amplifiers, and other high-frequency components, AlN PCBs keep the signal clean by reducing noise and supporting stable high-frequency operation.
- LED and Lighting Applications: High-brightness and UV LEDs rely on AlN PCBs to disperse heat efficiently, allowing for brighter, longer-lasting performance.
Disadvantages and Limitations
While Aluminium Nitride offers unique advantages, it also has some limitations:
- Hydrolysis Sensitivity: In humid environments, AlN can form aluminum hydroxide, so you need protective coatings for long-term reliability.
- Cost: AlN is more expensive than alternatives like alumina or aluminum, which might be better for applications with moderate thermal requirements.
If you don’t need as much thermal management, alumina or aluminum-based PCBs are a cheaper way to go without sacrificing performance.
For more information, visit below：
For more insights on Aluminium Nitride PCBs, check out：https://en.wikipedia.org/wiki/Aluminium_nitride
Frequently Asked Questions (FAQ)
AlN has a great combination of high thermal conductivity and electrical insulation, so it’s perfect for high-power applications where you need to get rid of heat.
Yes, AlN’s electrical insulation and frequency stability make it perfect for high-frequency components like RF amplifiers and 5G modules.
If you use it right and put the right coatings on it, AlN PCBs will last a long time, even in tough environments.
While AlN is great at thermal conductivity and insulation, other ceramics like alumina or BeO might be cheaper or better for applications with moderate heat loads.
Limited Time Offer:
Get $100 off your order TODAY!
Claim your $100 discount now – this offer won’t last long! Today ONLY!
Don’t miss this chance to save on your next project.
[Hurry! Only 50 discounts remaining!]
Trusted by 100+ businesses worldwide No hidden fees – transparent pricing Guaranteed quality with on-time deliverSummary
So, AlN PCBs are the best at thermal management and electrical insulation. That’s why they’re so important in industries where reliability and efficiency matter. Ready to make your designs better with AlN PCBs? Get a quote or talk to our experts to see how AlN PCBs can make your application better.
